Installation Prerequisites

• magento version>=2.3.5
• php version >=7.1
• php extension:curl bcmath
• chmod 777 /magentoRoot/var/log

---

The following are non-essential settings, if 504 error occurs, you can check the following options

• php ini execution timeout
• nginx or apache execution timeout settings

---

Note

1. Order numbers under the same accId cannot be duplicated, must be monotonically increasing, otherwise order status issues will occur.
2. Orders from different databases cannot share the same accId.
3. If there have been transactions under accId, before installing the plugin, the id start value should be set to greater than the current maximum order id value.
4. When resetting the database, store, or migrating accId to another store, you should check the maximum order number under accId.

Plugin Download

Pppay.zip

Installation Process

Magento Installation Path Rules

After decompressing the plugin package, we first check the registration.php file in the plugin package

registration.php

// Register Magento plugin component
\Magento\Framework\Component\ComponentRegistrar::register(
    \Magento\Framework\Component\ComponentRegistrar::MODULE,
    'Pppay_Pppay', // Plugin package name
    __DIR__
);

Plugin package name is Pppay, plugin name is Pppay. So the installation directory is app/code/Pppay/Pppay/ Just decompress the plugin code into app/code/Pppay/Pppay/.

Log in to the server via FTP, after the plugin is installed, the plugin needs to be enabled, it is disabled by default. We SSH login to the server, cd to the Magento project root directory.

---

1. View Plugin List

View Plugin List

php bin/magento module:status

This command lists the plugin list, we find Pppay_Pppay at the end of the list, and find the following information:

Plugin Status Output

...
List of disabled modules:[!code highlight]
Pppay_Pppay

The plugin is disabled. If you don't see your plugin, it means your plugin is not installed correctly, the installation directory is wrong, the system doesn't recognize it.

---

2. Enable Plugin and Install Plugin Data

Enable Plugin and Install Plugin Data

php bin/magento module:enable --clear-static-content Pppay_Pppay[!code highlight]
php bin/magento setup:upgrade[!code highlight]
php bin/magento setup:di:compile[!code highlight]

---

3. deploy

If it's default mode or production mode, you need to deploy

Deploy Static Content

php bin/magento cache:clean[!code highlight]
php bin/magento cache:flush[!code highlight]
php bin/magento setup:static-content:deploy -f[!code highlight]

4. RuntimeException

If still reporting [RuntimeException] errors, code has cache, need to execute system update

Clear Cache and Recompile

php bin/magento maintenance:enable[!code highlight]

rm -rf var/di/* && rm -rf var/generation/* && rm -rf var/cache/* && rm -rf var/page_cache/* && rm -rf var/view_preprocessed/* && rm -rf pub/static/* && rm -rf generated/* && mkdir var/di

php bin/magento setup:upgrade && php bin/magento setup:di:compile[!code highlight]

php bin/magento setup:static-content:deploy -f && php bin/magento indexer:reindex && php bin/magento maintenance:disable && php bin/magento cache:clean && php bin/magento cache:flush[!code highlight]

---

Configuration Process

1. Login to website backend
2. Select STORES->Configuration->Sales->Payments Method->Ping Pong Pay

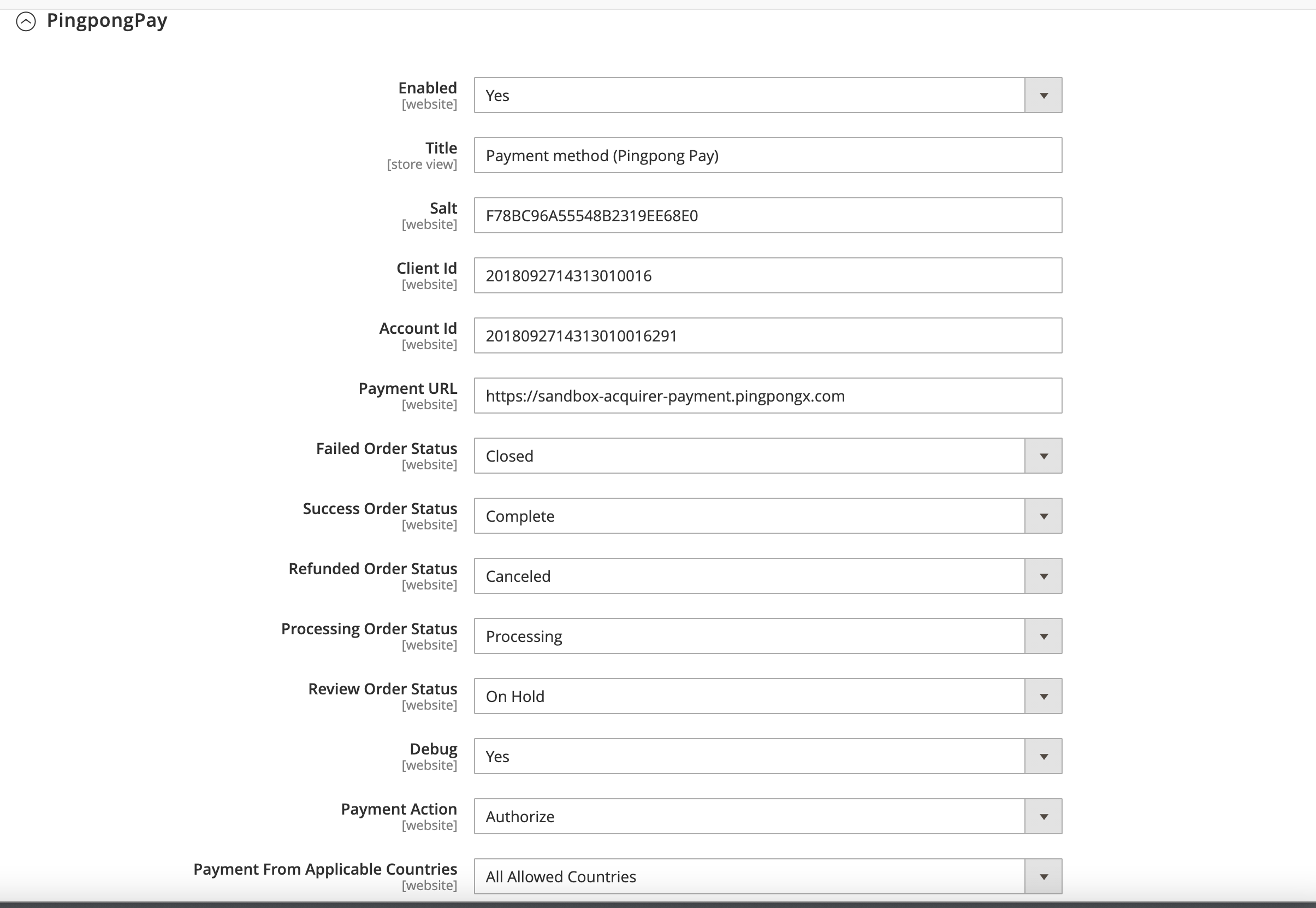

3. Configure parameters as shown in the following figure! image.png

---

Environment Parameters

Sandbox Environment Store Parameters

Sandbox Environment Store Parameters

# PingPong Sandbox Environment Store Parameters
clientId: 2018092714313010016
accId: 2018092714313010016291
salt: F78BC96A55548B2319EE68E0

Sandbox Environment Test Card Numbers

Sandbox Environment Test Card Numbers

# Standard Test Card Number
Card Number: 4200000000000000
Expiry: 12/22
cvv: 123
cvv must be 3-digit pure numbers

# 3DS Transaction Test Card Number
3DS Transaction Card: 4711100000000000

Environment Addresses

PingPong Payment Environment Addresses

# Sandbox Environment Address
Sandbox Environment    https://sandbox-acquirer-payment.pingpongx.com

# Production Environment Address
Production Environment    https://acquirer-payment.pingpongx.com

---

Integration Process

Sandbox Environment Integration

1. Install plugin according to file.
2. After plugin installation is complete, payment self-test is required, and complete the following items:

• Screenshot the page for entering card number
• Screenshot the final redirect page after payment completion
• Send screenshots to the integration group and notify technical support

During the installation process, if there are any issues, you can seek technical support in the integration group.

---

Precautions:

In sandbox environment, no deduction will be initiated from cardholders, shipping after payment will cause losses, not shipping may cause cardholders to file complaints. Therefore during integration, operations need to be cautious, after integration testing is passed, immediately close the payment channel, wait for production environment launch before opening.

---

Production Environment Integration

1. After the plugin completes the first round of sandbox environment integration under technical support, it will enter the website information and account review stage, after passing, production environment parameters will be issued.
2. After obtaining production parameters, complete the following items

• Replace sandbox environment parameters with production parameters.
• Self-test payment and complete screenshots
• Prepare a $1 product link.

3. Send screenshots and product link, and notify technical support, the customer/technical support will initiate a real transaction test on this product link. To verify integration results and website payment availability.
4. After completing real transaction testing, merchants need to initiate a refund to verify the refund process.
5. After completing the above process, website integration ends, payment channel officially launches, payment available.

Production Environment Configuration

Review Process

Get notification from integration group or business/customer that review is passed. Login to Merchant Backend

Go to Website List

As shown in the figure, go to Group Management->View Details->Website List

Group Management

• ⚫ Select from menu bar 【Website Management】-【Group Management】to enter group management page
• ⚫ This function allows current merchant to click "Create Group" to create new group; system will default give a default group
• ⚫ Websites are under groups.
• ⚫ Click "View Details" to enter group details page, can modify group name, view copy ID number, view websites under group.

Select Website

Select the corresponding website from the list according to the current integration website domain name

Get accId for corresponding domain website

Get Secret Key

Select from menu bar 【System Management】-【Secret Key Management】default enters secret key management page, can view website secret key on this page. After entering secret key management, can view secret keys corresponding to all websites, click "Secret Key Details" to view specific secret key fields. Secret keys with status "Normal" can be used, when status is "Abnormal", will not be able to use, contact relevant business personnel for handling.

---

M2 Common Commands

Display Backend Administrator URI

Display Backend Administrator URI

php bin/magento info:adminuri

Uninstall Module

For example, plugin name is Pppay_Pppay

Uninstall Module

php bin/magento module:uninstall --clear-static-content Pppay_Pppay

Enable Module Plugin

For example, plugin name is Pppay_Pppay

Enable Module Plugin

php bin/magento module:enable --clear-static-content Pppay_Pppay

Disable Module Plugin

For example, plugin name is Pppay_Pppay

Disable Module Plugin

php bin/magento module:disable --clear-static-content Pppay_Pppay

Plugin List (Enabled and Disabled)

Plugin List

php bin/magento module:status

Switch to Production Mode

Switch to Production Mode

php bin/magento deploy:mode:set production

Switch to Development Mode

Switch to Development Mode

php bin/magento deploy:mode:set developer

Code Compilation

Check if code has syntax errors, such as whether called classes exist, etc.

Code Compilation

bin/magento setup:di:compile[!code highlight]

Generate Static Files

Generate latest static files to pub/static. Default mode and generation mode must have these static files, otherwise will report errors.

Generate Static Files

bin/magento setup:static-content:deploy -f[!code highlight]

Will automatically generate static files for default language (usually English). That means the above command only generates static files for en_US. If you want to generate both English and Chinese simultaneously, need to specify language pack name after, which is:

Generate Multi-language Static Files

bin/magento setup:static-content:deploy en_US zh_Hans_CN -f[!code highlight]

Update Magento Database Data

Custom tables in plugin/add product attributes/change a field, etc., any data related to database tables. Use this command to update to database.

Update Magento Database Data

php bin/magento setup:upgrade[!code highlight]
